Local ventilation systems MIKrovent

Due to stricter building regulations, e.g. the energy saving ordinance (EnEV), new-builds are becoming more or less hermetically sealed buildings – Syndrom of Sick buildings – without natural air exchange to the outside. Everyday activities, such as cooking, washing, or showering, as well as the air breathed by the residents, increase the humidity and presence of health damaging air permissions in the rooms. Without sufficient ventilation, the health risks to people and to the building arising from mould, Radon, VOC and CO2 are increased. To ensure the minimum hygienic air exchange, it would be necessary to air throughout for approx. 10 minutes every two hours.

How can this be achieved in reality without throwing money through your windows?


An undisputed fact, recognised by numerous experts, is that local ventilation systems provide a healthier and more efficient ventilation compared to central ventilation systems:

  1. They can be installed practically anywhere, in each and every room.
  2. As the path of air is shorter, air distribution costs are significantly lower, while users can adjust the unit’s operation in each room according to their current needs.
  3. Due to simple installation, maintenance and cleaning, as well as its suitability for different-sized apartments and buildings, local ventilation system are gaining popularity and are now becoming even more popular than central ventilation systems.

GET A QUOTE
YOU ARE WELCOME TO FILL IN A FORM








    Type of widnows:

    noneVinylAlumininium


    Type of local ventilation systems:

    MIKrovent Home 35MIKrovent Office 60MIKrovent Professional 120


    MIK Engineering solutions:

    Panoramic wallsGlass facadesVentilated facades


    Message:

    * Required fields



    Yes

    I agree with general conditions.






    Choose your MIKrovent for your needs:

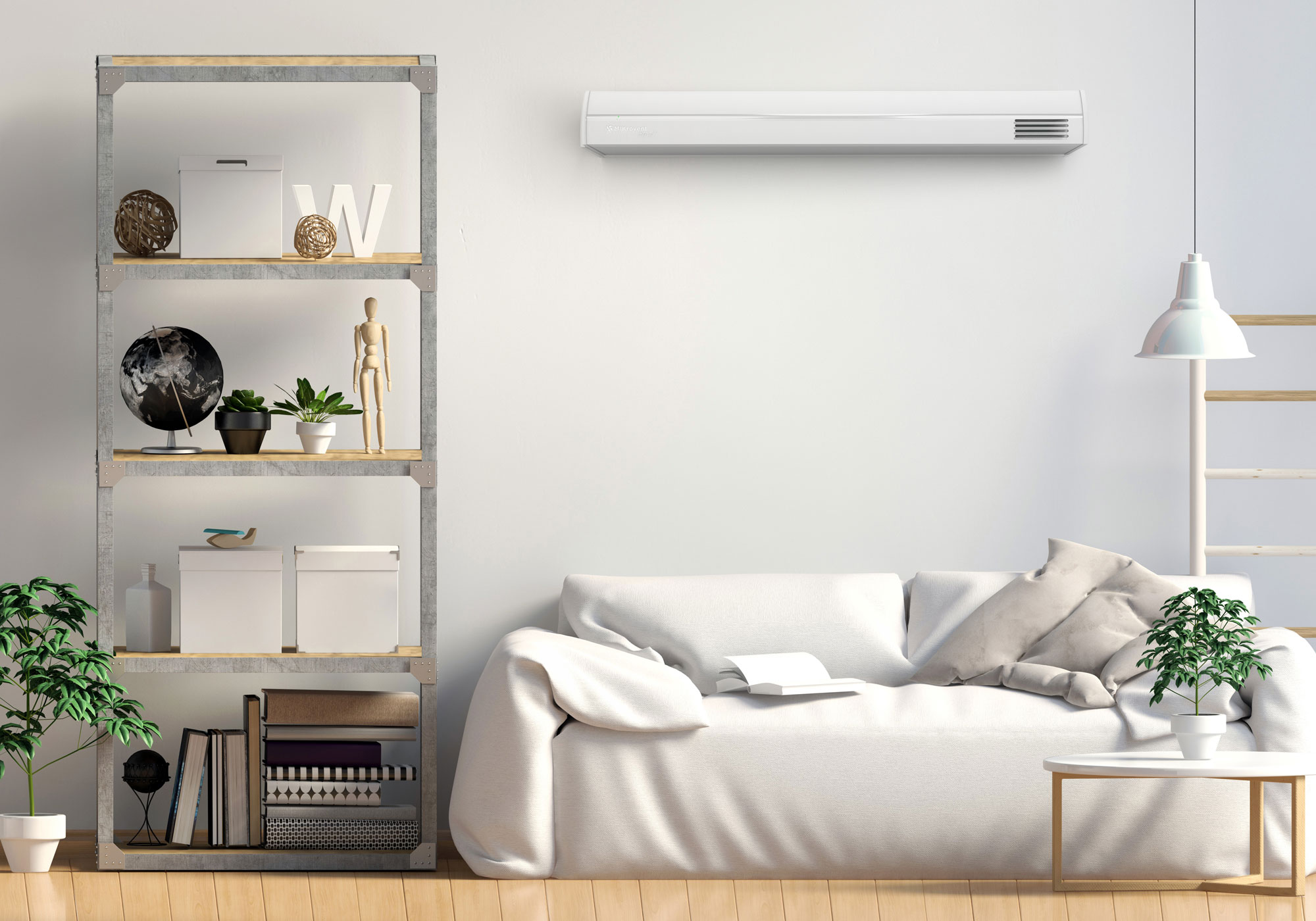

    MIKrovent Home35

    is suitable for rooms with high humidity levels, which can, in winter months, lead to the formation of molds, and thus impair your quality of living and needlessly undermine your health. It is also the perfect solution for Radon, CO2 and VOC problems in your building or living spaces. MIKrovent Home35 provides you effective vetilation of individual rooms up to 25m² / 269ft2, e.g. children’s rooms, bedrooms and similar rooms, occupied by one or two persons.

    Tech Specs
    Mounting location Horizontal or vertical on a wall or
    horizontal or vertical on a window extension
    Air flow 12-35 m3/h
    7-20.6
    CFM
    Heat recovery up to 72%
    Connection voltage 240V AC / 50Hz
    120V AC / 60Hz
    Power required up to 13W
    Noise2 up to 33dB
    Dimensions 1180 / 173 / 130 mm
    46.46 / 6.8 / 5.12 inches
    Filters ePM 2.5 (F7)/ePM 1 (H10 in H13)3 for air from outside
    ePM 10 (G4) for inner air
    Scope of operation
    outside temperature
    4
    from -25° to 50°C
    from -13° to 122°F
    Control Smart device / WiFi /
    Sensor station3 / ModBus3
    Standard sensors Temperature in humidity
    Sensors on
    Sensor station3
    CO, CO2, VOC
    Standalone sensor3 Radon

    1. When using an enthalpy heat exchanger.
    2. At 8dB damping in space.
    3. On request.

    4. The device operates down to -25°C / -13°F, the component manufacturer guarantees the operation of components down to -20°C / -4°F.

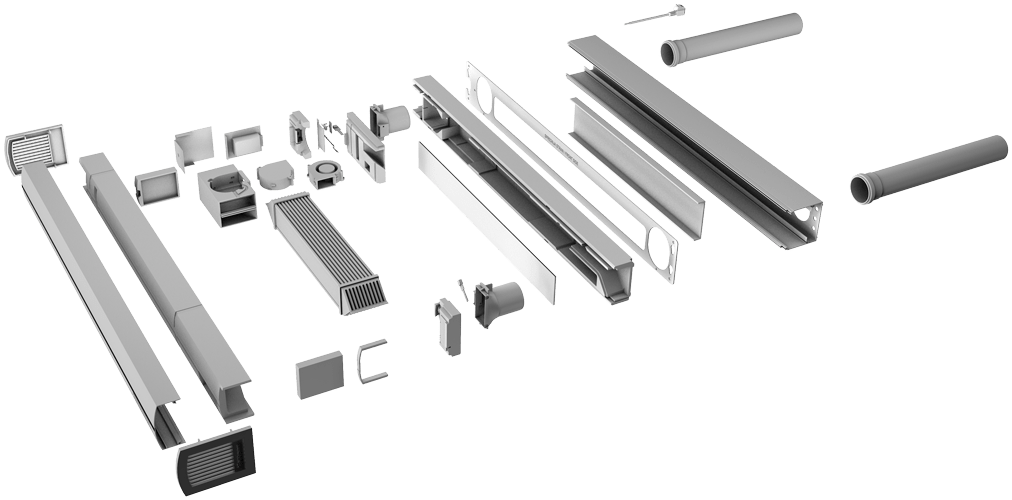

    Exploded view

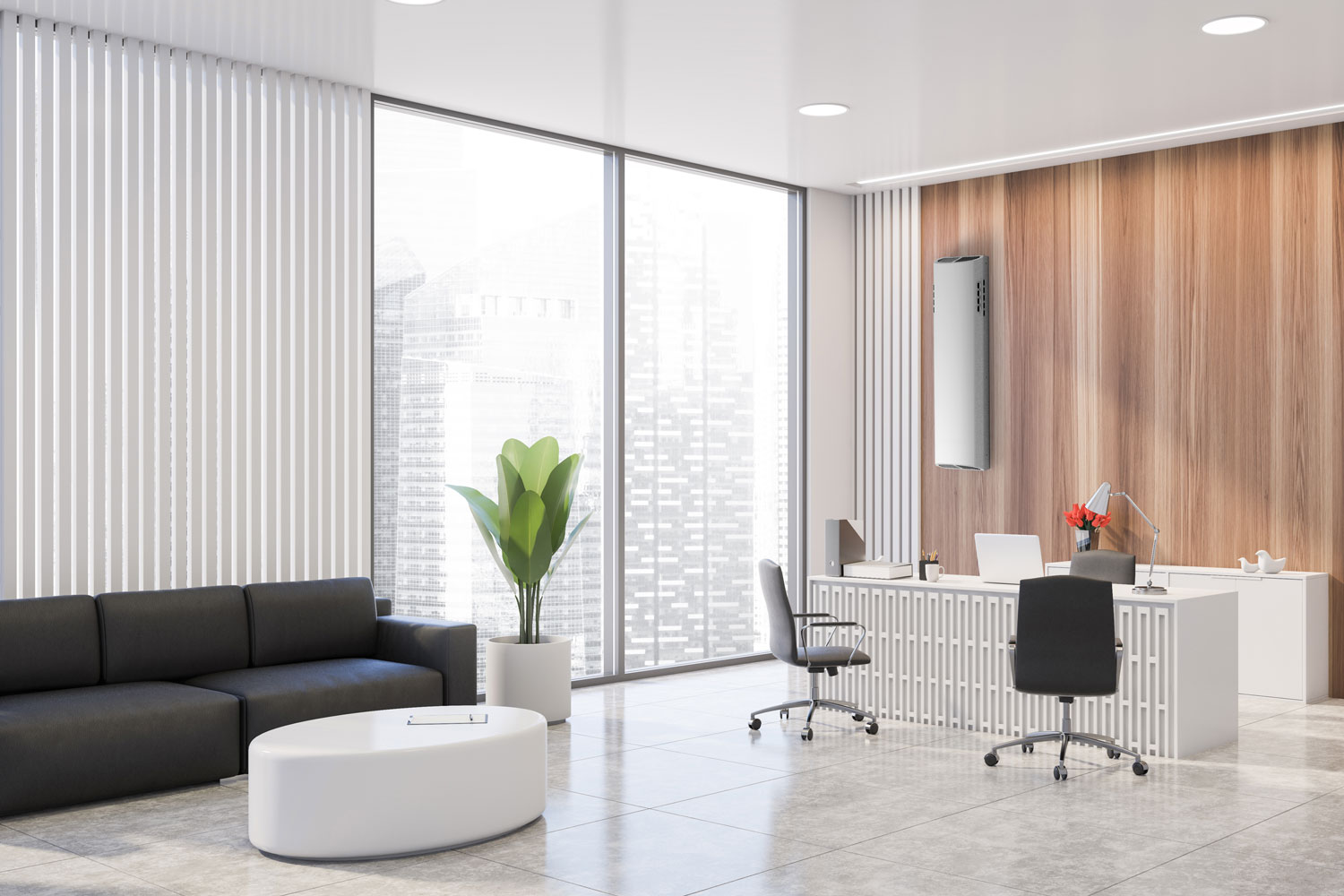

    MIKrovent Office60

    is an excellent solution for the complete ventilation of your office or solely for the ventilation of home multifunctional indoor spaces, where you spend most of your time. It is also the perfect solution for Radon, CO2 and VOC problems in your building or living spaces. MIKrovent Office60  provides you effective vetilation of  large, multifunctional living premises, hotel rooms and offices from 30 up to 60 m², occupied by 3 to 4 persons at the same time.

    Tech Specs
    Mounting location

    Vertical on a wall

    Air flow 20-60 m3/h
    11.77-35.3
    ft3/min
    Heat recovery up to 91%
    Connection voltage 240V AC / 50Hz
    120V AC / 60Hz
    Power required up to 23W
    Noise2 up to 33dB
    Dimensions 350 / 287 / 1430 mm
    13.78 / 11.3 / 56.3 inches
    Filters ePM 2.5 (F7)/ePM 1 (H10 in H13)3 for air from outside
    ePM 10 (G4) for inner air
    Scope of operation
    outside temperature
    4 [C] / [F]
    from -25° to 50°C
    from -13° to 122°F
    Control Smart device / WiFi /
    Sensor station3 / ModBus3
    Standard sensors Temperature in humidity
    Sensors on
    Sensor station3
    CO, CO2, VOC
    Standalone sensor3 Radon

    1. When using an enthalpy heat exchanger.
    2. At 8dB damping in space.
    3. On request.

    4. The device operates down to -25°C / -13°F, the component manufacturer guarantees the operation of components down to -20°C / -4°F.

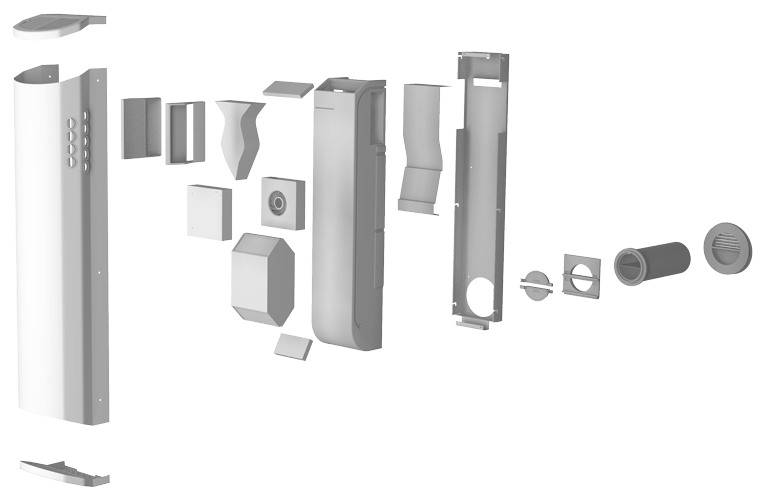

    Exploded view

    MIKrovent Professional120

    is recommended for installation in classrooms, playrooms, waiting rooms, and conference rooms. It is also suitable for the ventilation of your home, i.e. especially large multifunctional living spaces typical of modern architecture. It is also the perfect solution for Radon, CO2 and VOC problems in your building or living spaces. MIKrovent Professional120  provides you effective vetilation of larger spaces, occupied by more persons (schools, kindergartens, playrooms, dining rooms, halls, meeting rooms, waiting rooms, etc.) in size of up to 120 m².

    Tech Spec
    Mounting location

    Vertical on a wall

    Air flow 60-120 m3/h
    35.3-70.63
    ft3/min
    Heat recovery up to 90%
    Connection voltage 240V AC / 50Hz
    120V AC / 60Hz
    Power required up to 88W
    Noise2 up to 38dB
    Dimensions 350 / 287 / 1430 mm
    13.78 / 11.3 / 56.3 inches
    Filters ePM 2.5 (F7)/ePM 1 (H10 in H13)3 for air from outside
    ePM 10 (G4) for inner air
    Scope of operation
    outside temperature
    4 [C] / [F]
    from -25° to 50°C
    from -13° to 122°F
    Control Smart device / WiFi /
    Sensor station3 / ModBus3
    Standard sensors Temperature in humidity
    Sensors on
    Sensor station3
    CO, CO2, VOC
    Standalone sensor3 Radon

    1. When using an enthalpy heat exchanger.
    2. At 8dB damping in space.
    3. On request.

    4. The device operates down to -25°C / -13°F, the component manufacturer guarantees the operation of components down to -20°C / -4°F.

    Exploded view
